TECHNICAL DRAWINGS
Heighten quality, lower costs, and keep your project running smoothly with technical drawings for every need.
structural steel
Structural Steel Detailing for Buildings and Platforms:
Structural steel detailing for buildings and platforms is performed per AISC Steel Construction Manual, Specification for Structural Steel Building, Specification for structural joints using high-strength bolts, Code of standard practice for steel buildings and bridges, AWS D1.1 code, and OSHA
Typical steel shop fabrication drawings package includes:
- General Notes, Specifications requirements, Welding code requirements, Weld Details, Paint Details
- Isometric Views
- Erection plans and elevations
- Erection details
- Anchor Bolts Plan and Details
- Job standards
- Fabrication details-Beams, Columns, Bracing, Brick relieving angle system if part of structural steel, Door frames if part of structural steel package. Embedded angles. Roof frames.
- PDF files
- External Lists (BOM), kss, EJE, smlx, nc and dxf files
highway bridges
Detailing for steel bridges:
Detailing for steel bridges is done per the requirements of NISD, AISC, AASHTO and the applicable State DOT specifications.
Modeling and detailing of cambered steel bridges requires geometry investigation before and after deflection.
Typical steel shop fabrication drawings package includes:
- General Notes, Design Specifications requirements, Welding code requirements, Weld Details, Paint Details

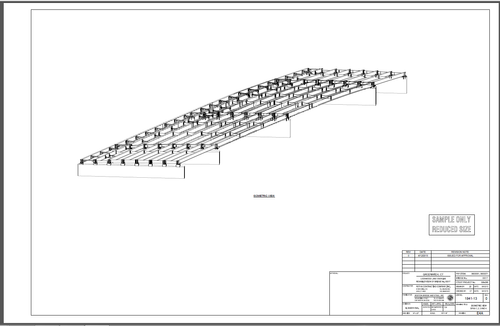

- Isometric Views
- Erection plans
- Erection elevations-end diaphragms, intermediate diaphragms
- Field Splice details
- Bearing details
- Bolts count
- Fabrication details
- Job standards

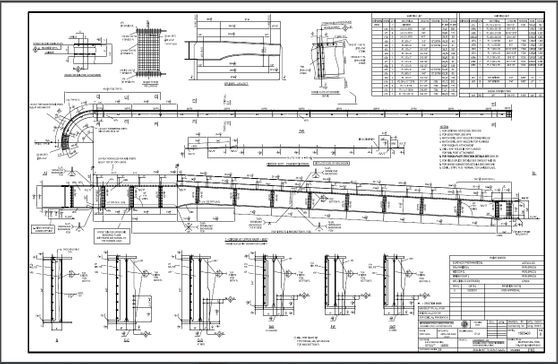

- Beam / stringer drawings
- Diaphragms, utility supports
- Shop reaming diagrams
- Camber diagrams
- Web and flange cutting
- External Lists (BOM), kss, EJE, smlx, nc and dxf files
Pedestrian bridges

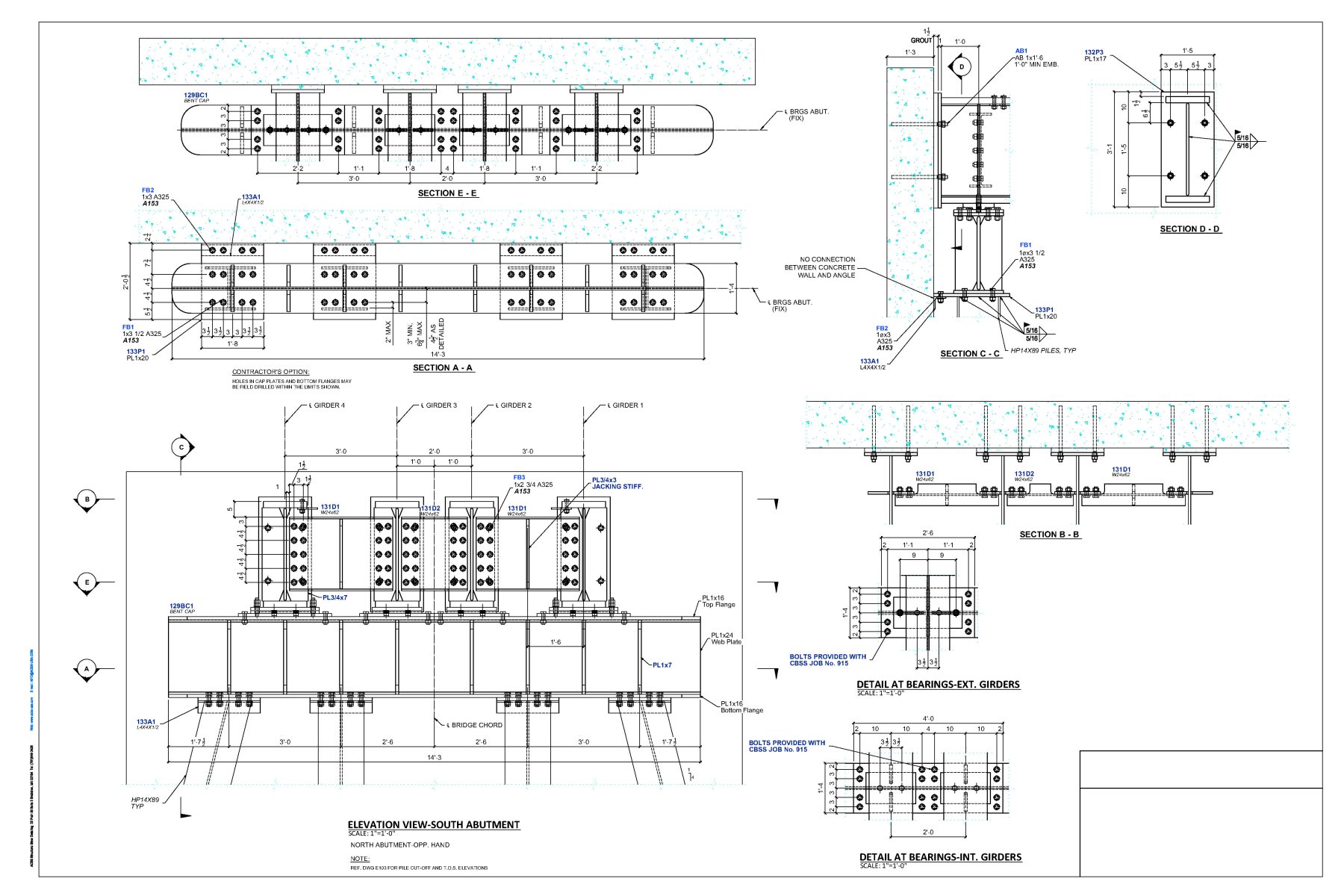

Railway Bridges
bridge repairs

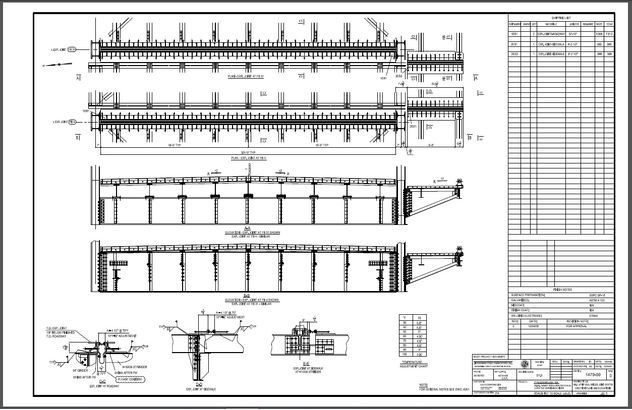

BRIDGE joints
Miscellaneous Metals
Miscellaneous Metals Detailing:
Miscellaneous metals detailing is performed per the requirements of AISC, applicable welding code, IBC and OSHA

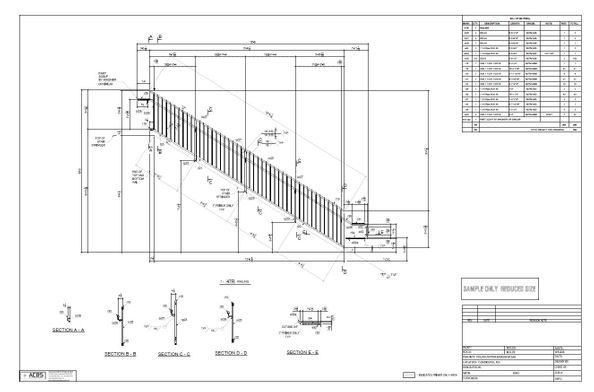

- Interior stairs with concrete filled pans
- Exterior stairs with grating treads
- Railings
- Wall handrails
- Ladders, caged ladders, roof ladders, elevator pit ladders
- Elevator sump pit frames
- Lintels
- Bearing plates
- Brick relieving angle system if not part of structural steel package
- Bollards
- Bike racks
- Steel grating and grating support frames
Isometric views
crane boom sections

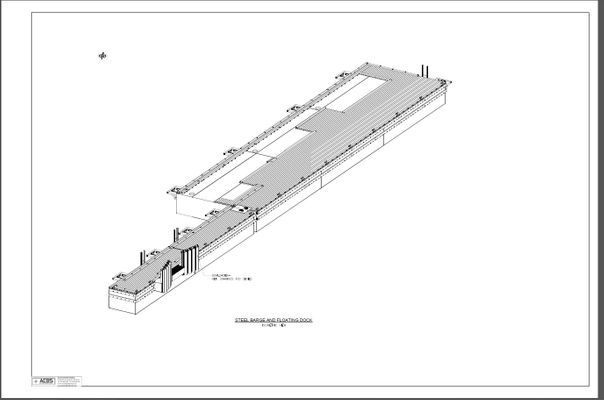

Barges

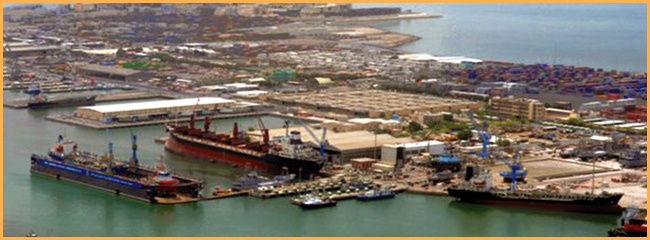

Shipbuilding
